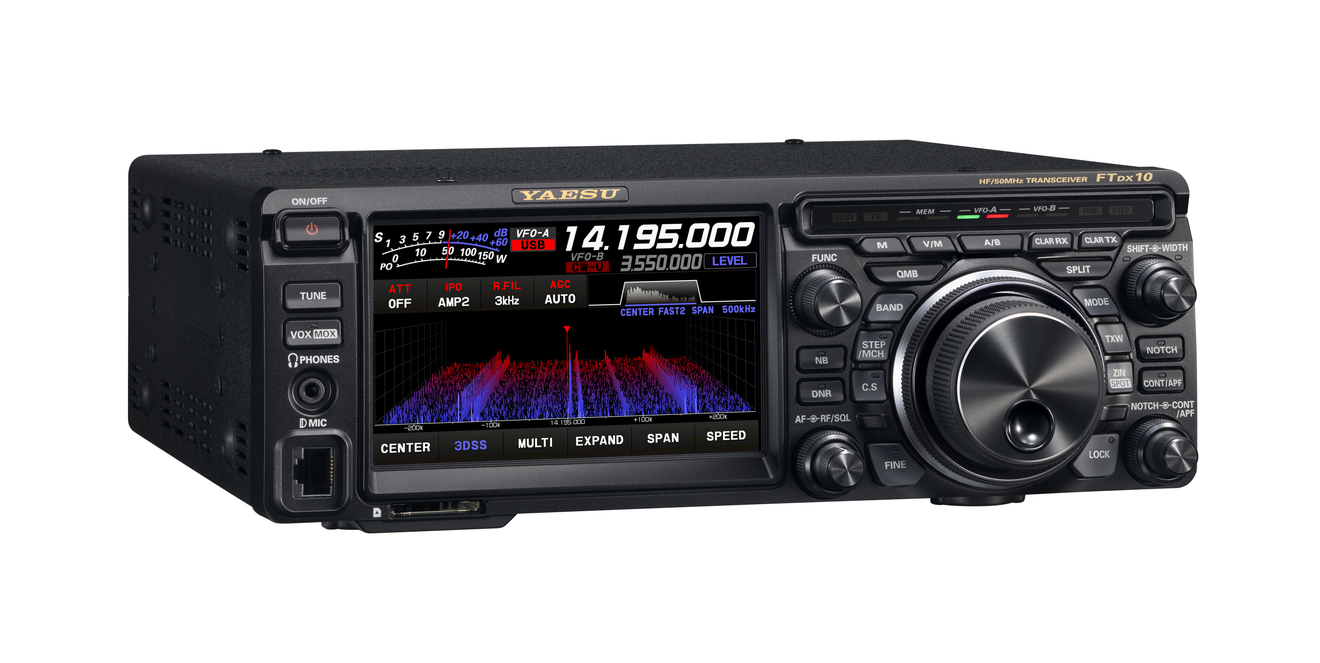

Neu veröffentlichte Bilder des neuen FTDX10 SDR



The features of the New FTDX10 include:

  • 15 separate band pass filters
  • Effective QRM rejection with the IF DSP (IF SHIFT/WIDTH, IF NOTCH DNF, DNR, COUNTOUR)
  • High-quality and super stable final amplifier utilizing the new push-pull MOSFET RD70HUP2
  • Aluminum Heat Sink with 80mm low-noise axial flow cooling fan
  • High Speed Automatic Antenna Tuner with a large capacity 100-channel memory
  • RF & AF Transmit Monitor
  • Microphone Amplifier with Three-stage parametric Equalizer (SSB/ AM mode)
  • QMB (Quick Memory Bank)
  • Band Stack Function

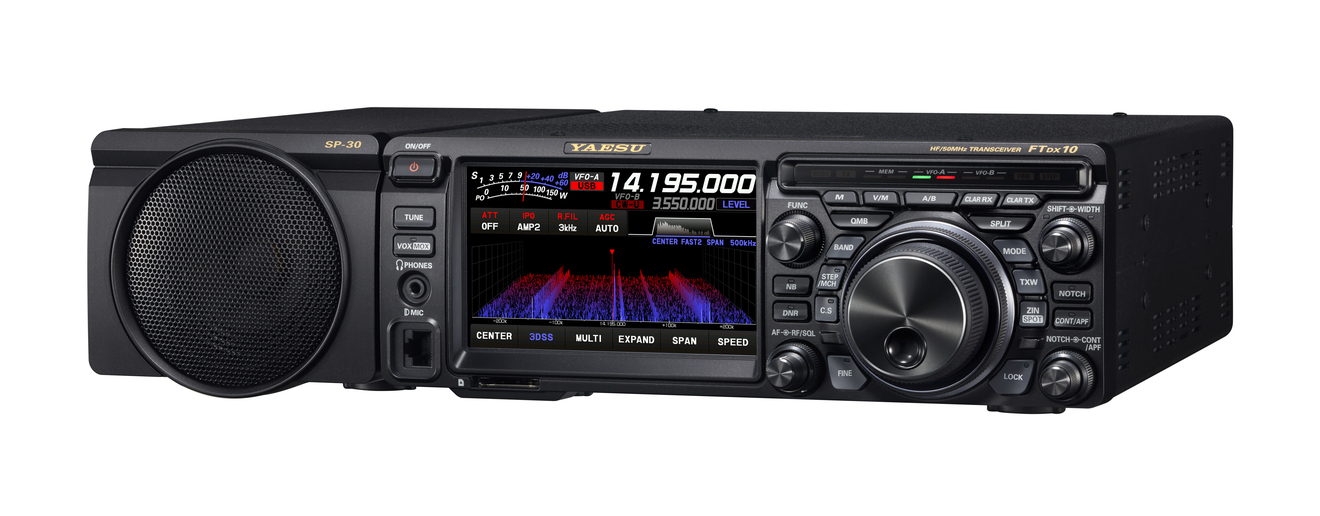

  • Optional speaker – SP-30 designed for the new FTDX10
  • Optional roofing filter (300Hz) – XF-130CN available

Radio Features:

  • HF/50MHz band 100W Transceiver
  • Hybrid SDR configuration utilizing a Narrow Bandwidth SDR and a Direct Sampling SDR
  • Narrow Band SDR enables Phenomenal Multi-signal Receiving characteristics (2kHz RMDR 116dB+, 2kHz BDR 141dB+, 2kHz 3rd IMDR 109dB+)
  • Down conversion, 9MHz IF Roofing Filters produce Excellent Shape Factor
  • 250 MHz HRDDS (High Resolution Direct Digital Synthesizer) Ultra Low-Noise Local-Oscillator System
  • 15 Separate Powerful Band Pass Filters (BPF)
  • Effective QRM Rejection with IF DSP (IF SHIFT/WIDTH, IF NOTCH/DNF,CONTOUR,DNR, APF)
  • High-quality and Super-Stable Final Amplifier utilizing the new push-pull MOSFET RD70HUP2
  • 5-inch Full Color Touch Panel and 3DSS (3-Dimensional Spectrum Stream) Display
  • MPVD (Multi-Purpose VFO Outer Dial) enables Outstanding Operating Performance
  • Quick Memory Bank (QMB)
  • Supports CW operation with multiple functions such as: CW zero-in, CW Auto zero-in, CW Reverse, CW decode, CW keying Signal form Shaping by FPGA and others
  • RTTY (FSK)/ PSK Encode/Decode Function
  • Other practical features such as Optional RF Gain Selection by IPO. Automatic Gain Control, Quick Split Function
  • SD Card Slot
  • Remote Operation via Internet with optional LAN-Unit (SCU-LAN10)


Specifications:

Frequency Ranges:

  • RX 30kHz – 75MHz (Operating)
  • RX 1.8MHz – 29.699999MHz (Specified performance, Amateur bands only)*
  • RX *5.1675/5.332/5.348/5.3585/5.373/5.405MHz (US only), 5.351500-5.366500MHz (EU only)/ 5.25000-5.406500 (UK only)
  • RX 50MHz – 53.999999MHz (Specified performance, Amateur bands only)
  • RX 70MHz – 70.499999MHz (Specifed performance, UK Amateur bands version only)
  • TX 1.8 – 54MHz (Amateur bands only)

Modulation Type: A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM),F1B(RTTY),G1B(PSK)

Frequency Stability: ±0.5ppm (32°F to +122°F/0? to +50?, after 1min)

Supply Voltage: DC 13.8V ±15%

Circuit Type: Double-Conversion Superheterodyne

Intermediate Frequencies:

  • 1st IF 9.005MHz
  • 2nd IF 24kHz


RF Power Output:

  • 5W – 100W (CW, LSB, USB, FM, RTTY, PKT)
  • 5W -25W (AM)


Case Size(W x H x D):
10.47 x 3.58 x 10.35(inch) / 266 x 91 x 263 (mm) *Protruding parts not included

Weight (Approx.): 13lbs/ 5.9kg


Supplied Accessories:

  • Microphone SSM-75E
  • DC Power Cable w/Fuse
  • Spare Fuse
  • 6.3mm 3-contact Plug
  • Operating Manual
