HF SILENT ONE PLUS – 1 KW HF – 1.8 – 54 MHz von der Firma Italab

ITB
(Italian Technology Broadcasting) wurde 1986 gegründet. Seine wahren Anfänge lassen sich auf das Jahr 1975 zurückführen, als private Radios in Italien an Popularität zu gewinnen begannen. ITB begann als Telenord, dann als Italab und wurde zum heutigen italienischen Technologie-Rundfunk. Unser Produktionsteam verfügt stolz über 36 Jahre Erfahrung im Rundfunkbereich und ist das beste Team, das der Markt heute bieten kann.

UNSER MARKT

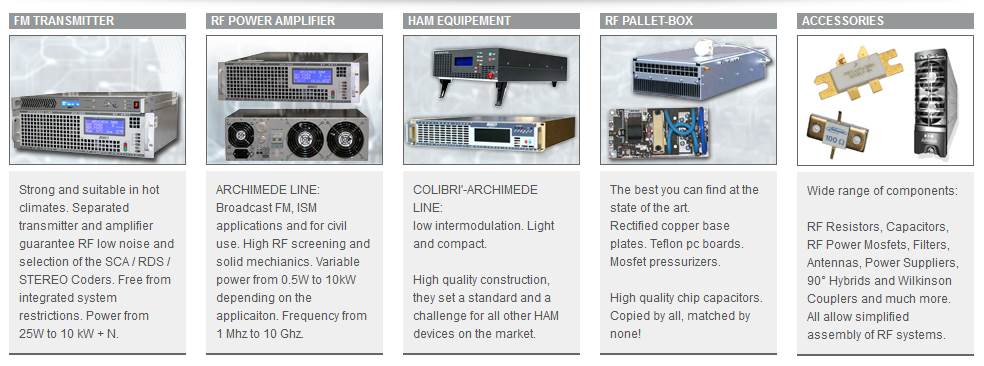

Die Entwicklung des Sektors hat uns dazu veranlasst, eine Lücke in Europa zu schließen. Wir waren die ersten, die SOLID STATE-Verstärker anboten. Unsere Industrieerfahrung haben wir auf die Produktion von HF-Komponenten übertragen. Wir waren Europas Pioniere in der Produktion von RF-Paletten im Bereich von 88-108 MHz. Später haben wir unser Angebot erweitert, um nicht nur den Radio- und Fernsehbereich, sondern auch den Amateurbereich (HAM) abzudecken. Heute bieten wir neben diesen Produkten auch Paletten in den unterschiedlichsten Leistungsstufen, mit Frequenzen zwischen 1 MHz und 10 GHz und mit 1 W bis 10 kW Leistung an.

HAUPTQUARTIER
Unser Hauptsitz liegt im Herzen von Mailand (Navigli-Gebiet). Wir verfügen über Vertretungen auf der ganzen Welt, die einen flächendeckenden Vertrieb unserer Produkte gewährleisten. ITB ist „Made in Italy“ und bietet qualitativ hochwertige Produkte, denen man weltweit vertrauen kann.

UNSERE AUFGABE
Unsere Mission ist es, durch kontinuierliche Forschung und kontinuierliche Investitionen eine wettbewerbsfähige Produktlinie zu gewährleisten. Unser Angebot zeichnet sich durch ein hervorragendes Preis-Leistungs-Verhältnis aus, das es uns ermöglicht, auf dem immer anspruchsvolleren Markt von heute wettbewerbsfähig zu bleiben. Unser Qualitätsstandard kann als Maßstab für unsere Wettbewerber auf der ganzen Welt gelten.


HF SILENT ONE PLUS – 1 KW HF – 1.8 – 54 MHz

Price : EURO 2980

New HF amplifier 1.8 – 30 MHz -50-54 MHz, output power 1000 W (800 W at 50 MHz)
Large TOUCH SCREEN display (7″), 3 individually selectable antenna outputs for each desired band, CAT, manual selection, extremely silent and light
REMOTE CONTROL VIA SERIAL WITH DEDICATED SOFTWARE
IMPROVED DIRECTIONAL COUPLER RESPONSE FOR PROTECTION INTERVENTION
Dimensions: 400x340x165mm.
Weight 13Kg. about.DATI GENERALIFrequency Coverage: 1.8 – 54 MHz (all amateur radio frequencies WARC included)
Operation Mode: All modes
Auto Band-change with CAT
VSWR Output Protection Value: 2 : 1
Rated PA Output Power: 1000/1200 watts
Harmonics Suppression: HF = better than -50dBc , VHF = better than – 65dBc
Antenna Outputs: Nr. 3 automatic selection
IN/OUT Impedance: 50 ohms unbalanced
RF POWER TRANSISTOR: 1 x 1800watts MRF1K80 NXP LDMOS MOSFET
Cooling: By temperature-controlled fans
Acoustic Noise Level: 45 dB maximum
RF Protections: High antenna VSWR, High Power Out, High Current, Over temperature
Power Supply Protections: Short circuit, Over current, Over voltage, Over temperature.
Power Supply Range: 170 Vac to 264 Vac 50/60Hz
Dimensions (approx.): 400 x 340 x 165 mm
Weight (approx.): 13 kg



HF 1000 PCB

Price : EURO 170



SUPPORTO IN RAME PER HF 1000

Price : euro 87,00 f.o.b. milan

GROUND COPPER SUPPORT, 10 mm THICK, PRE-DRILLED AND THREADED, FOR HF 1000 PCB



ATLAS 1200 SILENT – 432

Price : EURO 2980,00

NEW VERSION OF THE ATLAS 1000 WITH NEW FUNCTIONS AND 5 „TOUCH SCREEN COLOR DISPLAY“

GENERAL FEATURES:

P.OUT: …………………… 1050W + – 05 dB
P.IN: ………………………. 15-18 W (OTHER POWER OPTION)
REMOTE CONTROL (RS 232) WITH DEDICATED PROGRAM ( OPTION )
PWM VENTILATION (3 SETTINGS) COMFORT, CONTEST PTT PUSH
MONITOR:
1) TEMPERATURE (DEDICATED PAGE)
2) VOLTAGE
3) VENTILATION
4) LIFE COUNTER
5) BRIGHTNESS ADJUSTMENT
SETUP PAGE

POWER SUPPLY: 170 – 260 Vac

DIMENSIONS: 420 X 310 X 145 mm
WEIGHT: 8.2 Kg



ATLAS 1000- AR 27. amplificatore 1 KW 26 – 30 MHz

Price : Euro 1850,00 F.O.B. Milano

New 27 MHz 1Kw amplifier of small dimensions, typical driving 15-20 W (options available on request for different driving).
Silent with reduced dimensions and weight (43x34x9 cm, weight 8 kg) and easily transportable and can be placed in small spaces.
Equipped with a 3.2″ TOUCHSCREEN display that manages all functions.
Mechanical execution with laser cutting, powder coating, power stage with Freescale MRFE6VP61K25 Mosfet make this device a long-lasting device.
Direct reflected power and temperature protectionsGENERAL CHARACTERISTICSoutput power: 1 KW CW,AM p.p. FM
driving power: 15-20 Watts (opt. different controls)
harmonious product: CCIR compliant
coaxial relays: TOHTSU ( 2 )
display: 3.7 „(opt. output for display 5-7“)
Ac power supply: 180-260 Volt
dimensions: 43 x 34 x 9 cm.
weight: 8 kg.



HF 1000P50 – 1 KW, 1.6 – 50 MHz.

Price : EURO 595,00 f.o.b. Milano

Download PDF
PALLET AMPLIFIER FOR HF SELECTION, OUTPUT POWER 1KW 1.6 -50 MHz, MAIN POWER SUPPLY 45-50 Volt, 26-29 A. DRIVING 5-10 W. PALLET IS EQUIPPED WITH INPUT ATTENUATOR 10dB 100W DESIGNED FOR CONTINUOUS SERVICE (WITH PROPER VENTILATION), A WIDE COPPER BASE ENSURES A PROPER HEAT DISTRIBUTION PRODUCED BY MOSFET AMPLIFIER.
SIZE: 160mm x 70mm x 41,5mm



ATLAS SLIM 1 KW

Price : Euro 1850,00 F.O.B. Milano

New VHF 144 MHz 1Kw amplifier (50 – 70 MHz 1Kw, or 432 MHz 500W available on request) of small dimensions, typical driving 15-20 W (options available on request for different driving).
Silent with reduced dimensions and weight (43x34x9 cm, weight 8 kg) and easily transportable and can be placed in small spaces.
Equipped with a 3.2″ TOUCHSCREEN display that manages all functions.
The mechanical execution with laser cutting, powder coating, power stage with Freescale MRFE6VP61K25 Mosfet with Teflon PC board make this device a long-lasting device.
Direct reflected power and temperature protectionsGENERAL CHARACTERISTICSOutput power: 1KW
driving power: 15-20 Watt (opt. different controls)
harmonious product: CCIR compliant
coaxial relays: TOHTSU ( 2 )
display: 3.7″ (opt.output for 5-7″ display)
AC Power: 180-260 Volts
dimensions: 43x34x9 cm.
weight: 8Kg.opt.1- additional mosfet heatsink
opt-2 – additional fan for digital transmissions



LPF 1500 – HF 1.8 – 54 MHz

Price : EURO 397,00 F.O.B. MILAN

NEW HF FILTER BENCH, APPLICABLE POWER 1500 WATT CW.

BANDE :

160 mt
80 mt
40 mt
30 mt
20 mt
17-15 mt
12-10 mt
6 mt



MD 1K AR 50 – 70 , 1000 Watt da 50 MHz. 700 W 70 MHz

Price : 610,00 f.o.b. Milan

Download PDF
NEW RF PALLET AMPLIFIER 1000 W OPERATING 47 TO 74 MHZ,

PILOT 4 – 5 W
P.OUT = 1100 W
Vdd = 48.5 Volts
I.A. 31 – 33 A
FUNCTION CLASS: AB
OPERATING MODES: ALL MODE



HF SILENT TWO – 2 KW HF – 1,8 – 54 MHz

Price : Request quotation

Frequency Coverage: 1.8 – 54 MHz (all amateur radio frequencies WARC included)
Operation Mode: All modes
Auto Band-change with CAT
VSWR Output Protection Value: 2 : 1
Rated PA Output Power: 2000/2200 watts
Harmonics Suppression: HF = better than -50dBc, VHF = better than – 65dBc
Antenna Outputs: Nr. 3 automatic selection
IN/OUT Impedance: 50 ohms unbalanced
RF POWER TRANSISTOR: 2 x 1500watts MRF1K50H NXP LDMOS MOSFET
Cooling: By temperature-controlled fans Acoustic Noise Level: 45 dB maximum
RF Protections: High antenna VSWR, High Power Out, High Current, Over temperature
Power Supply Protections: Short circuit, Over current, Over voltage, Over temperature.
Power Supply Range: 170 Vac to 264 Vac 50/60Hz
Dimensions (approx.): 370 x 480 x 190mm
Weight (approx.): 24 kg



AMP 1000 – AR144LB – 1 KW 144 MHz,

Price : EURO 595,00 f.o.b. MILAN

Download PDF
DEVELOPED FOR BROADCAST APPLICATIONS, THIS LDMOS AMPLIFIER IS ABLE TO ACHIEVE AN OUTPUT POWER ON 50 OHM OF 1KW AT 144 MHz . IF PROPERLY COUPLED, IT IS SPECIFIC TO BE ADOPTED INTO RADIO AMATEUR SYSTEMS WITH OUTPUT POWERS FROM 1 TO 10+ KW.
ITS HIGH EFFICIENCY (MIN. 70%) ALLOWS A REAL SAVING ENERGY (COST EFFECTIVE) AND SIZES REDUCTION FOR DEDICATED TRANSMISSION APPLICATIONS.
MOREOVER, IT IS COMPACTED (LOW WEIGHT AND MECHANICAL SIZES).
THE PRODUCT IS AT THE STATE OF THE ART WITH A GOOD RATIO PRICE /PERFORMANCES.
ITS HIGH LINEARITY MAKES IT SUITABLE TO BE USED IN SSB AND EME (AT FULL POWER, BUT IT MUST BE PROPERLY COOLED).



ATLAS 1200 SILENT

Price : EURO 2380,00 F.O.B. MILAN



ATLAS 1000 AR 50-70 – 1KW 50 or 70 MHz

Price : EURO 2450,00 f.o.b. Milan

NEW 1 KW 50 or 70 MHz. ULTRA-COMPACT AMPLIFIER WITH 25-30 PILOTING. VERY LOW CONSUMPTION, VERY LIGHT (LESS THAN 7 Kg). SWITCHING EATON APR48 (TDK) POWER SUPPLIER BUILDS THE NEW MOSFET FREESCALE WITH SWR 65:1. POWER SUPPLY IS 190 – 260 Vac, COMPLETE WITH EXIT POWER PROTECTIONS. SWR, TEMPERATURE; COMPLETE WITH COAXIAL RELAIS. VERY LARGE DIGITAL DISPLAY WILL SHOW ALL ESSENTIAL MEASURES. VERY SIMPLE INTERFACE AS IT IS POWERED BY A HIGH PERFORMANCE MICROPROCESSOR. OCCUPIES LITTLE SPACE (H=92MM,D=450MM,L=300MM ). THE INSTRUMENT CAN BE PERSONALIZED WITH YOUR LOGO. VERSION O.E.M.



MD1K-AR432 – 1 KW 432 MHz

Price : EURO 780,00 f.o.b. Milano

Download PDF
New Pallet Amplifier 1 KW 430 MHz. Uses only a MOSFET (Freescale). This solution allows to realizare an amplifier without the use of expensive couplers thus reducing the size. Mounted on a base of copper with 10 mm thickness, cs golden and metallic, Bias independently for each „Gate“.Power supply: 48 -50 Volt, 29-31 A
Piloting: 18 -20 W
Dimensions: 100 x 150 x 30 mm



MD 500 U – 500 Watt 432 MHz

Price : www.hamitalab.com

New Pallet Amplifier 500 W 430 MHz. Uses only a MOSFET (Freescale). This solution allows to realizare an amplifier without the use of expensive couplers thus reducing the size. Mounted on a base of copper with 10 mm thickness, cs golden and metallic,

Power supply: 48 -50 Volt, 15 – 16 A
Piloting: 7 – 8 W
Dimensions: 100 x 150 x 30 mm

Contacts

Country : France
Name: RF MARKET
Address: 3 avenue de la liberation 63122 Ceyrat phone: 04 44 05 31 98
Email: contact@rf-market.fr
3 avenue de la liberation 63122 Ceyrat phone: 04 44 05 31 98
Country : Spain
Name: TESCOM TELECOM – ITB ASISTENCIA DIRECTA
Address: 08970, C/ MAJOR,80 – SANT JOAN DESPI – BARCELONA – +34 639 367 293
Email: oscar@tescom.link
Country : Italy
Name: ITALAB
Address: +39 0290389417
Email: info@italab.it
