NanoVNA V2 Plus4, 4″ display, 4x schneller, 4GHz maximum measurement frequency
von Jörg · Veröffentlicht · Aktualisiert
NanoVNA V2 Plus4, 108,79 € EUR
https://nanorfe.com/nanovna-v2.html

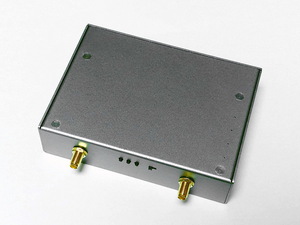

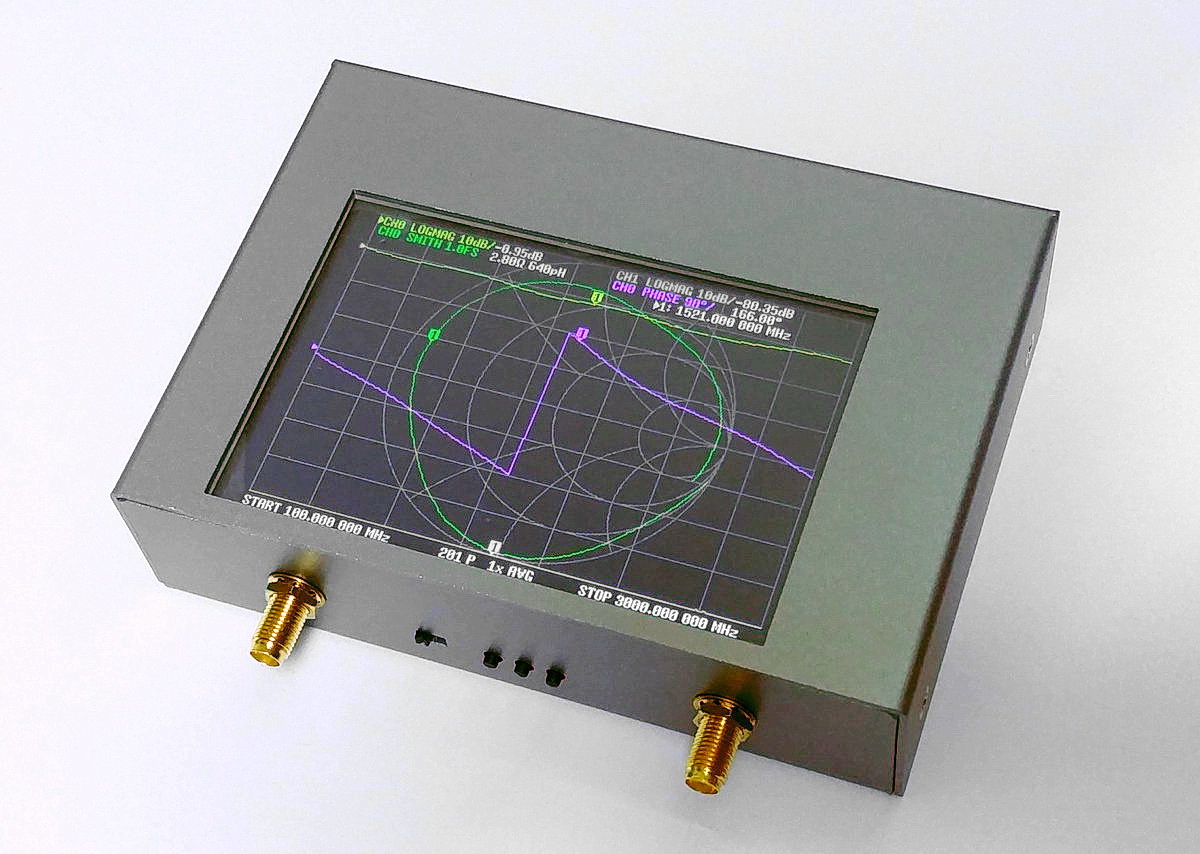

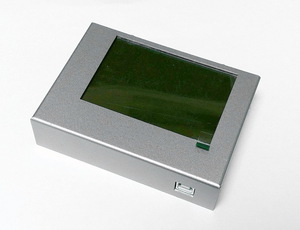

4GHz NanoVNA Vektor-Netzwerkanalysator der zweiten Generation, unser eigenes Design. Der V2 Plus4 ist die neueste Hardware-Version mit 4″ Display, Aluminiumgehäuse, höherem Dynamikbereich und 4-facher Sweep-Geschwindigkeit im Vergleich zum Original V2.
Features:
- up to 90dB dynamic range @ 1GHz, up to 80dB dynamic range @ 3GHz (see specifications below)
- 4″ display
- 4x faster sweep speed (400 points/s)
- 4GHz maximum measurement frequency
- if DHL shipping is selected, includes 3200mAh 18650 battery
- Accepts standard flat-top 18650 lithium-ion battery, includes on-board protection and charging

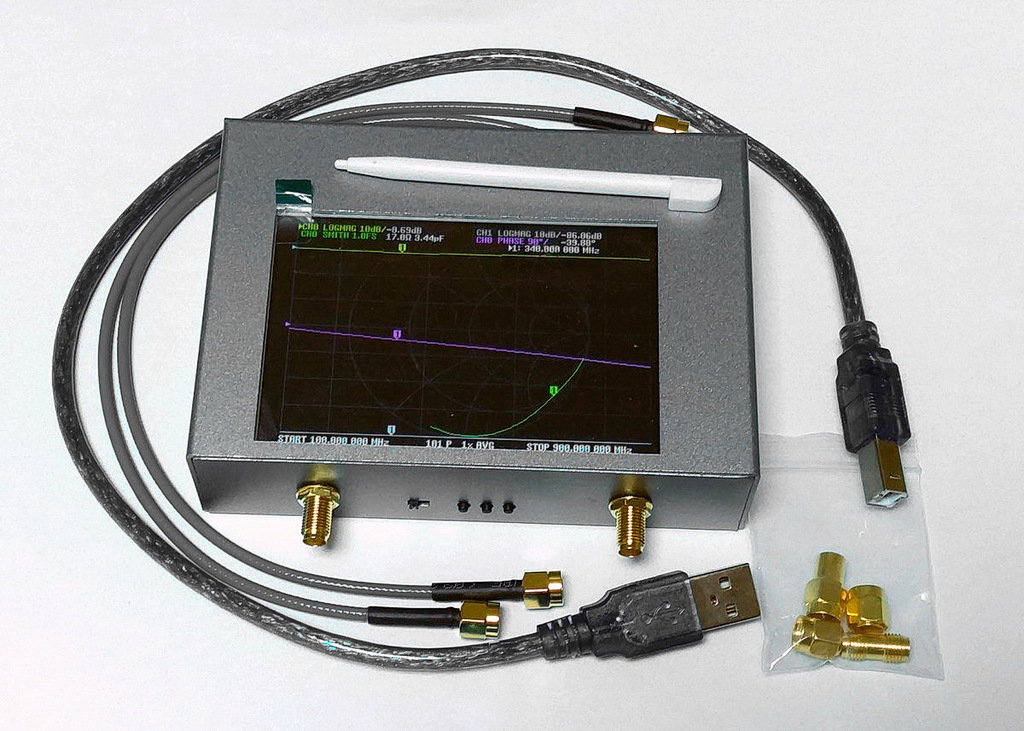

Package includes:
- VNA (with aluminum enclosure; fully assembled)
- 2 x 30cm SS405 cable
- SOLT calibration kit (SMA male)
- USB cable
- Touchscreen stylus
Documentation
User manual:
https://nanorfe.com/nanovna-v2-user-manual.html
Software
VNA-QT software download:
https://github.com/nanovna/NanoVNA-QT/releases
Firmware releases:
https://nanorfe.com/nanovna-versions.html
Support
Customer support: click „Contact Seller“ on the right ==>
NanoVNA V2 support forum:
Discord:
Specifications:
- Frequency range: 10kHz – 4GHz
- System dynamic range: 70dB (up to 3GHz, calibrated, no averaging)
- System dynamic range: 80dB (up to 3GHz, calibrated, 5x averaging)
- System dynamic range: 90dB (up to 1GHz, calibrated, 20x averaging)
- S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
- Sweep rate: 400 points/s
- Display: 4“, 480 x 320
- USB interface: USB Type-B
- Power: USB
- Battery: 3000mAh 18650 lithium battery (included if DHL shipping is selected)
- Maximum sweep points (on device): 201
- Maximum sweep points (USB): 1024
- Port 2 return loss (1.5GHz): 20dB typ
- Port 2 return loss (3GHz): 15dB min, 17dB typ
- VNA-QT software supported platforms: Linux, Windows (7+), Mac OS
For usage instructions see the user guide (linked above).
Battery
If DHL shipping is selected, a 3200mAh battery is included.
Operation without a battery is also supported.
You can insert a standard 18650 flat-top 3.6V lithium-ion battery like the following:
The NanoVNA V2 Plus4 includes on-board battery protection and charging circuitry and can charge the battery from USB. See here for how to insert the battery.
